LEOS-100
LEOS-100 is based on the flight proven avionics of LEOS-50. There are three versions of LEOS-100: S / D / DX. The high modularity of the platform allows its utilisation across all orbits and all missions. BST currently builds multiple LEOS-100 satellites including LEOS-100DX for its customers.

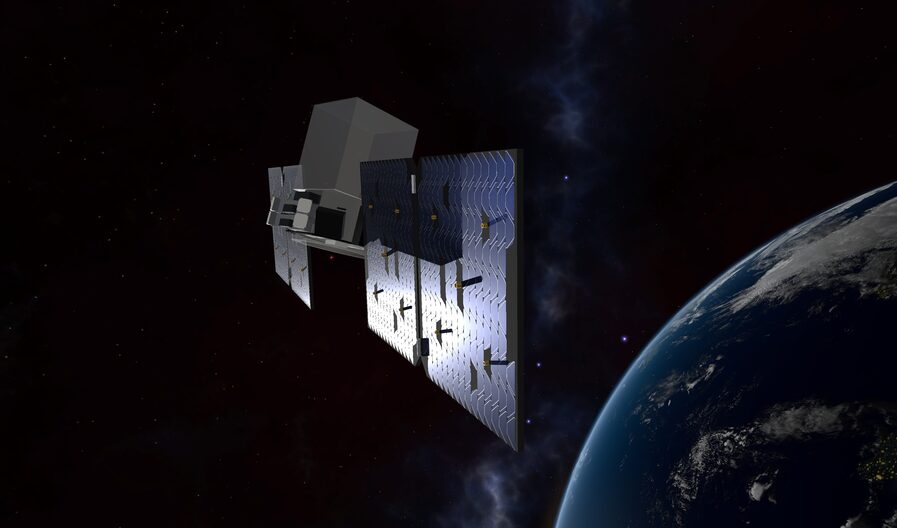

LEOS-100S
LEOS-100S is the smallest variant of LEOS-100. It supports large payloads and is well suited for IOD as well as submeter optical earth observation missions.
| Parameter | LEOS-100S |
|---|---|
| Max. Payload Mass | 250 kg |
| Payload Dimensions | 2 m³ |
| Payload Peak Power | 154 W |
| Orbit avg. Power Typical: 10:30 SSO, 100% Nadir | Up to 75 W 150 W solar panel peak |
| PL Data Rate | Up to 10 Gbps |
| PL Data Storage | 1 TB per DPU |
| PL Data Downlink | X-band 1.2 Gbps (10 Gbit/s optical) |
| TM/TC Protocols | RS422, CAN, GigE, I²C, PCIe, USB, & others |
| Propulsion | Electrical and/or chemical |
| Redundancy | Selected Subsystems |
| Communications Protocols | CCSDS compatible |
| Communications Security | Authentication & Encryption |
| Design Lifetime | 5 years LEO |

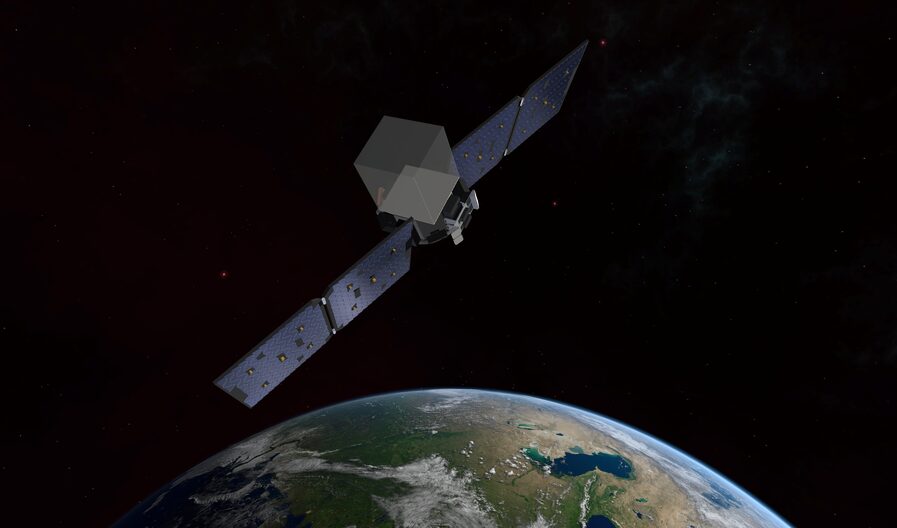

LEOS-100D
LEOS-100D is the standard LEOS-100. It offers SPF free design and supports missions requiring high reliability systems from in orbit servicing to defence.
| Parameter | LEOS-100D |
|---|---|
| Max. Payload Mass | 250 kg |
| Payload Dimensions | 2 m³ |
| Payload Peak Power | 308 W |
| Orbit avg. Power Typical: 10:30 SSO, 100% Nadir | Up to 180 W 300 W solar panel peak |
| PL Data Rate | Up to 10 Gbps |
| PL Data Storage | 1 TB per DPU |
| PL Data Downlink | X-band 1.2 Gbps (10 Gbit/s optical) |
| TM/TC Protocols | RS422, CAN, GigE, I²C, PCIe, USB, & others |
| Propulsion | Electrical and/or chemical |
| Redundancy | SPF Free |
| Communications Protocols | CCSDS compatible |
| Communications Security | Authentication & Encryption |
| Design Lifetime | 5 years LEO |

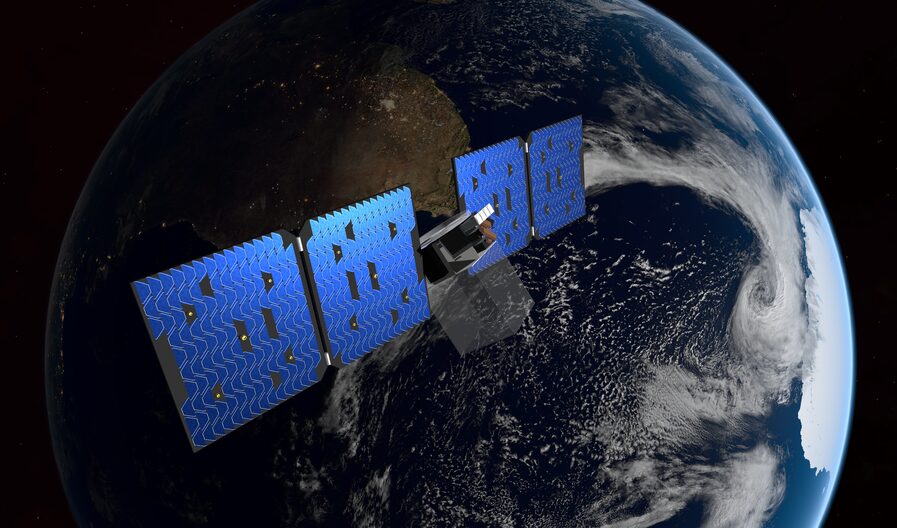

LEOS-100DX
LEOS-100DX is the high-power variant of LEOS-100. It offers SPF free design and supports missions requiring high reliability and high power such as radar and communication.
| Parameter | LEOS-100DX |
|---|---|
| Max. Payload Mass | 250 kg |
| Payload Dimensions | 2 m³ |
| Payload Peak Power | Up to 4000 W |
| Orbit avg. Power Typical: 10:30 SSO, 100% Nadir | Up to 800 W 1.5 kW solar panel peak |
| PL Data Rate | Up to 10 Gbps |
| PL Data Storage | 1 TB per DPU |
| PL Data Downlink | X-band 1.2 Gbps (10 Gbit/s optical) |
| TM/TC Protocols | RS422, CAN, GigE, I²C, PCIe, USB, & others |
| Propulsion | Electrical and/or chemical |
| Redundancy | SPF Free |
| Communications Protocols | CCSDS compatible |
| Communications Security | Authentication & Encryption |
| Design Lifetime | 5 years LEO |
